Solid Testing Drums

Solid Testing Drums from Siebtechnik Tema

For abrasion and strength tests in accordance with DIN, ISO and ASTM standards
For abrasion and strength tests in accordance with DIN, ISO and ASTM standards for coke, iron ore, sinter and HBI (e.g. ISO 556, ISO 3271, ISO 15967)

To relieve your employees

Due to the quantities involved, drum tests to determine the abrasion behaviour or strength of bulk materials are very labour-intensive. Relieve your employees of additional lifting operations with our automatic test drums.

Advantages
  • Fully automatic drum process, including emptying of the drum
  • Fully automatic opening and closing of the test drum via pneumatic cylinder
  • Dust and noise protection thanks to the complete enclosure of the solid testing drum
  • Drive rails/brackets in accordance with the requirements of the relevant standard.
  • Divided stainless steel drip pans on a mobile trolley
  • Touchscreen control
  • Preselection of the number of revolutions according to the required tests in accordance with IRSID, MICUM, …
  • Speed preselection
Operating behaviour and mechanical properties
The automatic test drums are used to determine drum strength in accordance with the relevant DIN, ISO and ASTM standards (e.g. ISO 556, ISO 3271) for coke, iron ore and sinter. However, it can also be used for any other bulk materials where strength values are of interest.

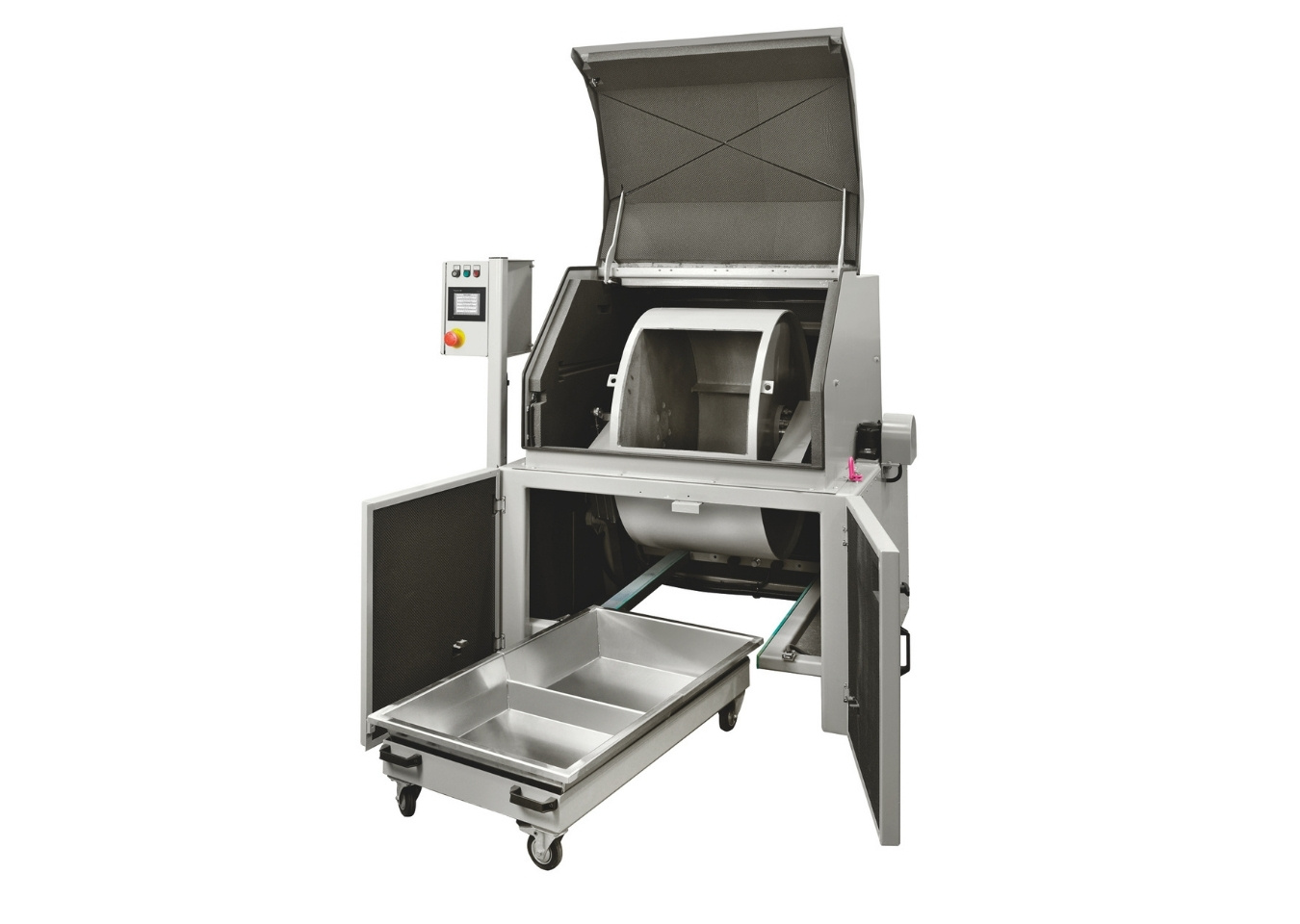

Our solid testing drums are manufactured in two sizes in accordance with the standard specifications as a welded construction and are equipped with the corresponding driver bars, revolution counter and a drip tray.

Read more about other products from Siebtechnik Tema here.

Download the Solid Testing Drums brochure here.

pdf-brosjyrer-industrihuset
Order information about Solid Testing Drums
Order information about Solid Testing Drums

Solid Testing Drums

Follow a manual added link

FPT 500

Follow a manual added link

FPT 1000

Get an offer

Send melding - Pascal (Engelsk)

Contact us

Pascal Mørch

Pascal Mørch

+47 977 29 712
pascal@labhuset.no

We would like to hear from you if you have any questions or inquiries about our services and products!

Get an offer

Send melding - Pascal (Engelsk)

Contact us

Pascal Mørch

We would like to hear from you if you have any questions or inquiries about our services and products!

Pascal Mørch

+47 977 29 712
pascal@labhuset.no

Product Specifications

Applications

Solid testing drums from Siebtechnik Tema are developed for laboratories and production facilities that require reliable determination of the mechanical strength and abrasion behaviour of bulk materials. The drums are used in industries where material strength is essential for product quality and process optimisation.

Typical applications include:

  • Coke and coking plants
  • Iron ore production and pelletising
  • Sinter plants
  • Steelworks and metallurgy
  • Mining and mineral processing
  • Cement industry
  • Recycling and material recovery
  • Quality control and laboratory analysis
  • All bulk materials where strength values are of interest

Advantages

Fully automatic operation – fully automatic drum process including emptying of the drum

Automatic opening and closing – the test drum’s cylinder opens and closes automatically via pneumatic cylinders

Dust and noise protection – the complete enclosure of the solid testing drum ensures a clean and quiet working environment

Standard-compliant drive rails – drive rails and brackets in accordance with the requirements of the relevant standard

Mobile collection – divided stainless steel drip pans on a mobile trolley for easy handling

Touchscreen – easy control via touchscreen panel

Preselection of test parameters – preselection of the number of revolutions in accordance with IRSID, MICUM, etc., as well as speed preselection

Technical Specifications

Read more about the technical specifications for ST solid testing drums.

Features

  • Fully automatic drum process including emptying
  • Fully automatic opening and closing of the test drum via pneumatic cylinders
  • Complete enclosure for dust and noise protection
  • Drive rails/brackets in accordance with the relevant standards
  • Divided stainless steel drip pans on a mobile trolley
  • Touchscreen control
  • Preselection of the number of revolutions in accordance with IRSID, MICUM, etc
  • Speed preselection
  • Two sizes available (FPT 500/1000-A and FPT 1000/1000-A)
  • Welded construction with driver bars, revolution counter and drip tray

Who are solid testing drums from Siebtechnik Tema suitable for?

Solid testing drums from Siebtechnik Tema are ideal for laboratories and production facilities that require standardised testing of mechanical strength and abrasion behaviour. They are particularly well suited for:

  • Coking plants and steel producers testing coke strength
  • Iron ore producers and pelletising plants
  • Sinter plants requiring quality control
  • Laboratories performing strength tests in accordance with ISO 556, ISO 3271 or ISO 15967
  • Recycling and material recovery facilities
  • All businesses handling bulk materials where strength values are critical

About the manufacturer Siebtechnik Tema

Siebtechnik Tema is a globally active, family-owned manufacturer with over 100 years of experience in equipment for sample preparation, particle analysis and material testing of solids and bulk materials. As a recognised OEM and systems supplier, they build instruments engineered for accurate, reproducible results in demanding laboratory and production environments.

At Industrihuset we supply Siebtechnik Tema equipment to Norwegian industry, with technical guidance to help you choose the right instrument for your application.

Documentation

Data sheet – Solid Testing Drums from Siebtechnik Tema (PDF)

Download the Solid Testing Drums brochure here.

Order information about Solid Testing Drums
Order information about Solid Testing Drums

FAQ

Frequently Asked Questions

The automatic solid testing drums are used to determine the drum strength and abrasion behaviour of bulk materials such as coke, iron ore and sinter, in accordance with DIN, ISO and ASTM standards (e.g. ISO 556, ISO 3271, ISO 15967).

Yes, the drums are fully automatic. This includes an automatic drum process with emptying, as well as automatic opening and closing of the test drum’s cylinder via pneumatics. This significantly reduces the workload compared to manual testing.

The solid testing drums are manufactured in two sizes: FPT 500/1000-A (internal drum length 500 mm) and FPT 1000/1000-A (internal drum length 1000 mm). Both have an internal diameter of 1000 mm.

Yes, the drums can be used for all bulk materials where strength values are of interest – not just coke, iron ore and sinter. They are versatile tools for strength testing across many industries.

The drums have a complete enclosure that provides full dust and noise protection. This ensures a clean and safe working environment during testing.
