Water bath WTB

Water bath

The Memmert water bath for the temperature control of ointments, emulsions, samples, plates and nutrient solutions in the laboratory, as well as warm storage and calibration in the industrial segments available in six model sizes. The operating concept of the wather bath WTB impresses with its intuitive and convenient menu navigation. A special highlight: with the customizable, remote view CustomView, you can always keep an eye on the important information.

Intuitive to operate, customisable remote screen CustomView.

Practical and robust: quick water drainage, easy to clean.

Can be calibrated for precise temperature settings.

Can be flexibly expanded with customized accessories.

Temperature range up to +100 °C

  • 6 model sizes (7 to 51 litres volume)
  • extensive range of accessories: e.g. flat or gable cover, shaking device, circulation pump
  • state-of-the-art control technology
  • high-quality, corrosion-resistant and easily cleanable stainless steel for the working chamber and housing

Practical and robust

Perfect for everyday use in the laboratory: The high-quality stainless steel container with rounded corners is easy to clean and can be completely drained using the standard drain valve without residue left behind. The compact ergonomic design means the Memmert WTB fits on any laboratory table.

Read more about other products from Memmert Industry here.

Download the Water bath brochure.

pdf-brosjyrer-industrihuset
Order information about Water bath
Order information about Water bath

Get an offer

Send melding - Frode (Engelsk)

Contact us

Frode Rangset

Frode Rangset

+47 948 26 016
frode@labhuset.no

We would like to hear from you if you have any questions or inquiries about our services and products!

Get an offer

Send melding - Frode (Engelsk)

Contact us

Frode Rangset

We would like to hear from you if you have any questions or inquiries about our services and products!

Frode Rangset

+47 948 26 016
frode@labhuset.no

Product Specifications

Areas of Use

The Memmert WTB is built for daily laboratory use where precise, reliable temperature control of liquids is what matters. Typical applications include:

  • Temperature control of ointments, emulsions and pharmaceutical preparations
  • Incubation and tempering of samples, cultures and reagents
  • Warming nutrient solutions and buffer solutions
  • Warm storage of blood samples, vaccines and biological preparations
  • Calibration and temperature control in industry and quality control
  • Melting agarose and gelatine in biotechnology laboratories
  • Tempering enzymes and PCR reagents
  • Warming plastics and moulding materials in industrial production

Advantages

Intuitive touchscreen operation
A 3.5″ colour touchscreen display with pared-back menu navigation makes the WTB usable straight out of the box. No training needed — touch, turn and go.

CustomView — a personalised remote display
CustomView lets you decide which parameters appear on the display at any moment: one, two or three values. The view appears immediately at start-up and is readable from anywhere in the lab, so monitoring doesn’t mean leaving your bench.

2-point calibration
Every WTB can be calibrated by the user at two freely chosen temperatures — useful for compensating load-dependent deviation. That gives high precision without calling out a service engineer.

Three-stage safety system
A silicone heating element with dry-running protection, soft start and an over-temperature limiter means the WTB protects itself from overheating, even with no water in it. This cuts service costs considerably and makes unattended operation safer.

Rapid drainage with no residue
The stainless steel container has rounded corners and a standard drain valve, so it empties completely. No hidden pockets of water for bacteria to grow in — simple and hygienic.

Modular accessory system
Circulation pump, Peltier cooler (CDP115), shaking device, test tube rack and insertable grid can all be retrofitted without special tools. The WTB grows with the application.

Peltier cooling for work below ambient
With the CDP115 Peltier cooling unit, the WTB can work down to +10 °C. It fits every WTB size and needs no refrigerant — compact and environmentally sound.

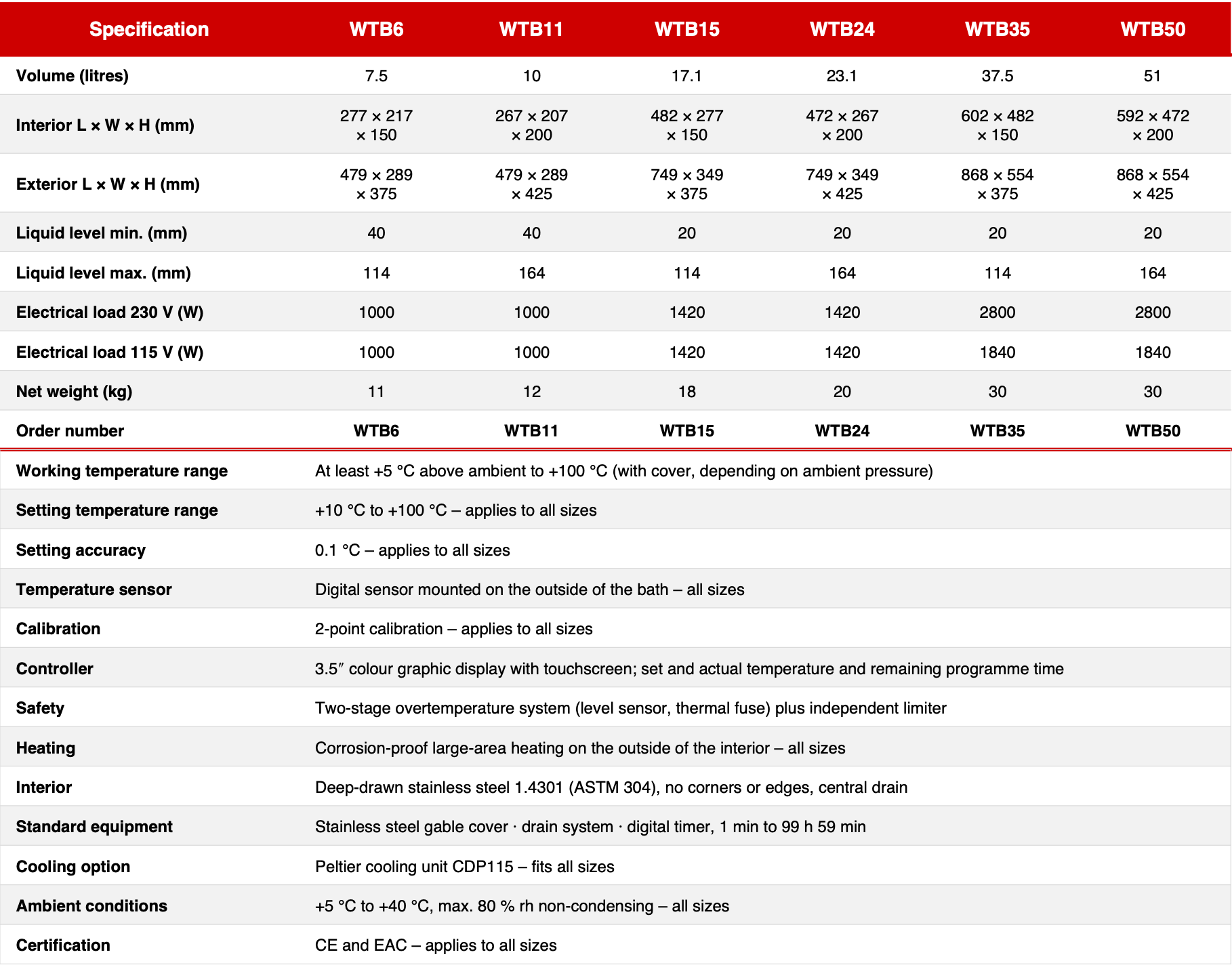

Technical specifications

Functions

  • Deep-drawn stainless steel container (1.4301 / ASTM 304) with rounded corners — no edges, easy to clean
  • Central drain with standard drain valve — rapid, complete drainage
  • Corrosion-proof large-area heating on the outside of the interior
  • 3.5″ TFT colour display with touchscreen and pared-back menu navigation
  • CustomView — personalised remote display of one to three parameters
  • 2-point user calibration for maximum precision
  • Three-stage safety system: dry-running protection, soft start, over-temperature limiter
  • Independent temperature limiter switches off the heating in the event of a fault
  • Setting accuracy 0.1 °C
  • CDP115 Peltier cooling unit (accessory) — cooling down to +10 °C, fits all sizes
  • Circulation pump (accessory) — improved temperature homogeneity
  • Shaking device (accessory) — for samples requiring agitation
  • Flat or gable cover (accessory)
  • Test tube rack and insertable grid (accessory)
  • Reversible bottom shelf (accessory)
  • Compliance: EN 61010-1, EN 61010-2-010

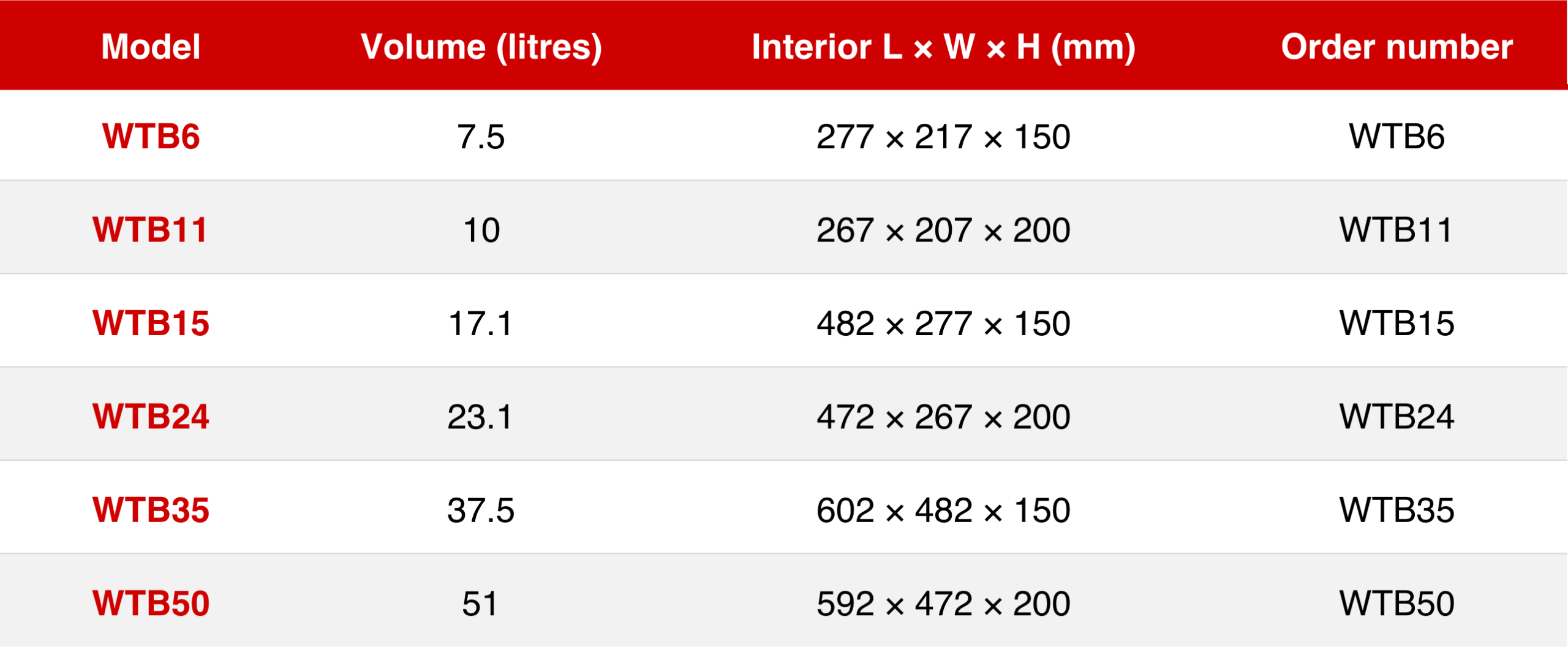

Model overview

Documentation

Download the full brochure: Memmert water bath WTB (PDF)

Key technical data:

  • Working temperature range: at least +5 °C above ambient to +100 °C
  • Setting temperature range: +10 to +100 °C
  • With CDP115 Peltier cooling: operation below ambient, down to +10 °C
  • Setting accuracy: 0.1 °C
  • Volume: 7.5–51 litres (6 sizes)
  • Display: 3.5″ TFT colour display with touchscreen
  • Calibration: 2-point user calibration
  • Power supply: 230 V or 115 V, 50/60 Hz
  • Ambient conditions: +5 °C to +40 °C
  • Compliance: EN 61010-1, EN 61010-2-010

Who is the Memmert Water bath WTB for?

The Memmert WTB suits laboratories and businesses needing precise, reliable and straightforward temperature control of liquids. It is a particularly good fit for:

  • Pharmaceutical laboratories tempering ointments, emulsions and preparations
  • Clinical and diagnostic laboratories warming blood samples and reagents
  • Biotechnology laboratories melting agarose and tempering enzymes
  • Food laboratories warming nutrient solutions
  • Industrial laboratories doing calibration and warm storage
  • Quality control laboratories needing documentable, reproducible temperature control
  • Laboratories with shifting requirements — the WTB expands modularly as applications change

About the Manufacturer – Memmert GmbH

Memmert is a German manufacturer with more than 90 years of experience in laboratory ovens, incubators and climate chambers. Founded in Schwabach, Bavaria in 1933, the family-owned company is today one of the world’s leading suppliers of temperature-controlled laboratory equipment.

  • Founded: 1933
  • Address: Äußere Rittersbacher Str. 38, 91126 Schwabach, Germany
  • Website: www.memmert.com
  • Specialities: heating ovens, incubators, climate chambers, vacuum ovens and water baths
  • Quality: ISO 9001-certified manufacturing

Memmert products are used worldwide in research, pharmaceuticals, food production, electronics and industry. Industrihuset carries the full Memmert range, adapted to Norwegian laboratories and businesses.

Order information about Water bath
Order information about Water bath

FAQ

Frequently Asked Questions

Most water baths are damaged or destroyed if started without water or allowed to boil dry. The WTB has three layers of protection: dry-running protection that stops heating when the water level drops too low, soft start that prevents the element overheating at start-up without water, and a mechanical over-temperature limiter as the last line of defence. The silicone heating element protects itself, which cuts expensive service costs substantially.

2-point calibration lets you adjust the WTB against two freely chosen reference temperatures, typically to compensate for deviation caused by the heat capacity of the load or by local conditions. For quality control, calibration laboratories and validated processes this is valuable. For ordinary daily use the standard accuracy is usually sufficient.

Yes, with the CDP115 Peltier cooling unit (accessory). It fits every WTB size and gives temperature control down to +10 °C with no refrigerant. The unit is compact, quiet and environmentally sound.

For normal laboratory use, distilled or demineralised water is recommended to avoid limescale in the container and on the heating element. Tap water can be used but requires more frequent cleaning. The container drains completely through the standard drain valve, leaving no residue for bacteria to grow in.

Yes. The WTB’s modular design means the shaking device, circulation pump, Peltier cooler and other accessories fit without special tools — either at the point of purchase or as an upgrade to an existing unit.

Yes. Industrihuset is the authorised Norwegian distributor for Memmert. Contact frode@labhuset.no or call +47 948 26 016.
